Mitsubishi FX-family

BASIC INFO

More freedom, more friendliness: FX

A wide lineup in FX series offers you many choices to fit to your budget and application.
You are sure to find a model that fulfills your needs.

FX Series Lineup

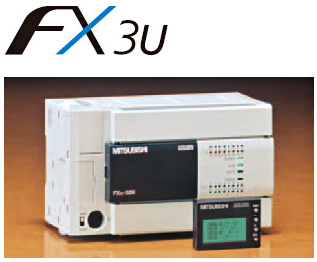

For high speed,
high functionality,
and expandability



Memory
64,000 step RAM memory built-in. Flash memory cassette can also be mounted.
Processing speed
Basic instruction: 0.065 μs/instruction (LD instruction) Application instruction: 0.642 to 100 μs/instruction
Device
Auxiliary relay: 7,680 pts Timer: 512 pts Counter: 235 pts Data register: 8,000 pts
Extension register: 32,768 pts Extension file register (optional memory): 32,768 pts
Application instruction
List of supported application instructions

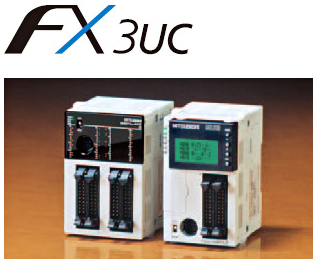

For high speed,
reduced wiring,
reduced space



Memory
64,000 step RAM memory built-in. Flash memory cassette can also be mounted.
Processing speed
Basic instruction: 0.065 μs/instruction (LD instruction) Application instruction: 0.642 to 100 μs/instruction
Device
Auxiliary relay: 7,680 pts Timer: 512 pts Counter: 235 pts Data register: 8,000 pts
Extension register: 32,768 pts Extension file register (optional memory): 32,768 pts
Application instruction
List of supported application instructions
For communication,
analog expansions,
and up to 256 I/O control



Memory
32,000 step EEPROM memory built-in. Battery-free and maintenance-free.
Processing speed
Basic instruction: 0.21μs/instruction (in standard mode) 0.42μs/instruction (in extension mode)
Application instruction: 0.5 to 100 μs/instruction (in standard mode) 1.2 to 100 μs/instruction (in extension mode)
Device
Auxiliary relay: 7,680 pts Timer: 320 pts Counter: 235 pts Data register: 8,000 pts
Extension register: 24,000 pts Extension file register: 24,000 pts
Application instruction
List of supported application instructions
*1: 14pt, 24pt models can only connect 1 board
*2: 14pt, 24pt models have 2 independent axes

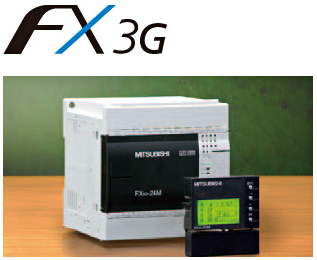

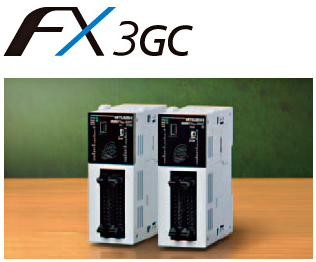

For reduced space and
reduced wiring



Memory
32,000 step EEPROM memory built-in. Battery-free and maintenance-free.
Processing speed
Basic instruction: 0.21 μs/instruction (in standard mode) 0.42 μs/instruction (in extension mode)
Application instruction: 0.5 to 100 μs/instruction (in standard mode) 1.2 to 100 μs/instruction (in extension mode)
Device
Auxiliary relay: 7,680 pts Timer: 320 pts Counter: 235 pts Data register: 8,000 pts
Extension register: 24,000 pts Extension file register: 24,000 pts
Application instruction
List of supported application instructions
For communication,
analog expansions,
and low cost



Memory
16,000 step EEPROM memory built-in. Battery-free and maintenance-free.
(Program capacity is 4,000 steps)
Processing speed
Basic instruction: 0.21 μs/instruction
Application instruction: 0.5 to 100μs/instruction
Device
Auxiliary relay: 1,536 pts Timer: 138 pts Counter: 67 pts Data register: 3,000 pts
Application instruction
List of supported application instructions

Explanation of the icons
Depending on control points, total 256 I/O extension devices can be connected.
*Includes CC-Link remote I/O
FX3U/FX3UC can count at high speed input frequency 100kHz (1-phase 6pts), 50kHz (2-phase 2pts), 10kHz (1-phase 2pts).
Depending on control points, total 384 I/O extension devices can be connected.
*Includes CC-Link remote I/O
FX3S/FX3GC has 2 axes simple positioning function built into the main unit.
Depending on the purpose, various special function blocks can be connected.
FX3G/FX3U/FX3UChas 3 axes simple positioning built into the main unit.
*FX3G 14 pt, 24 pt models have independent 2 axes.
Function can be easily added by mounting a function expansion board to the main unit.
I/O can be connected in connector format, reducing wiring effort.
In FX3UC-32MT-LT, CC-Link/LT master functionality is built-in.
1 phase: 60 kHz x 4 pts/ 10 kHz x 2 pts    2 phase: 30 kHz x 2 pts/ 5 kHz 1 pt
1 phase: 60 kHz x 2 pts/ 10 kHz x 4 pts     2 phase: 30 kHz x 1 pt/ 5 kHz 1 pt
In FX3S-30MR/ES-2AD, FX3S-30MT/ES-2AD, and FX3S-30MT/ESS-2AD, 2ch analog input (current input) function is built-in.

Main Parts No. for FX-family

FX3U-
FX3U-128BTY-M FX3U-232-BD FX3U-48MR/DS FX3U-4DA
FX3U-128MR/ES-A FX3U-2HC FX3U-48MR/ES-A FX3U-4DA-ADP
FX3U-128MT/ES-A FX3U-2HSY-ADP FX3U-48MT/DS FX3U-4DA-BS
FX3U-128MT/ESS FX3U-32BL FX3U-48MT/DSS FX3U-4HSX-ADP
FX3U-16CCL-M FX3U-32DP FX3U-48MT/ES-A FX3U-4LC
FX3U-16MR/DS FX3U-32MR/DS FX3U-48MT/ES-BS FX3U-64CCL
FX3U-16MR/ES-A FX3U-32MR/ES-A FX3U-48MT/ESS FX3U-64DP-M
FX3U-16MT/DS FX3U-32MT/DS FX3U-4AD FX3U-64MR/DS
FX3U-16MT/DSS FX3U-32MT/DSS FX3U-4AD-ADP FX3U-64MR/ES-A
FX3U-16MT/ES-A FX3U-32MT/ES-A FX3U-4AD-ADP-BS FX3U-64MT/DS
FX3U-16MT/ESS FX3U-32MT/ESS FX3U-4AD-BS FX3U-64MT/DSS
FX3U-1PG FX3U-32MTESA-BS FX3U-4AD-PNK-ADP FX3U-64MT/ES-A
FX3U-1PSU-5V FX3U-3A-ADP FX3U-4AD-PT-ADP FX3U-64MT/ESS
FX3U-20SSC-H FX3U-422-BD FX3U-4AD-PTW-ADP FX3U-64MTESA-BS
FX3U-232ADP FX3U-485ADP-MB FX3U-4AD-TC-ADP FX3U-7DM
FX3U-232ADP-MB FX3U-485-BD FX3U-80MT/ES-A FX3U-7DM-HLD
FX3U-80MR/DS FX3U-80MT/DS FX3U-80MT/ESS FX3U-CAN
FX3U-80MR/ES-A FX3U-80MT/DSS FX3U-FLROM-16 FX3U-FLROM-64L
FX3U-CF-ADP FX3U-ENET-ADP FX3U-FLROM-64 FX3U-USB-BD
FX3U-CNV-BD FX3U-ENET-L
FX3UC-
FX3UC-16MR/DS-T FX3UC-16MT/DSS FX3UC-32MT/DSS FX3UC-64MT/D
FX3UC-16MR/D-T FX3UC-16MT/DSS-P4 FX3UC-32MT-LT FX3UC-64MT/DSS
FX3UC-16MT/D FX3UC-1PS-5V FX3UC-32MT-LT-2 FX3UC-96MT/D
FX3UC-16MT/D-P4 FX3UC-32MT/D FX3UC-4AD FX3UC-96MT/DSS
FX3G-
FX3G-14MR/DS FX3G-24MT/DSS FX3G-5DM FX3GC-32MT/D
FX3G-14MR/ES-A FX3G-24MT/ES-A FX3G-60MR/DS FX3GC-32MT/DSS
FX3G-14MT/DS FX3G-24MT/ESS FX3G-60MR/ES-A FX3G-CNV-ADP
FX3G-14MT/DSS FX3G-2AD-BD FX3G-60MT/DS FX3GE-24MR/DS
FX3G-14MT/ES-A FX3G-40MR/DS FX3G-60MT/DSS FX3GE-24MR/ES
FX3G-14MT/ESS FX3G-40MR/ES-A FX3G-60MT/ES-A FX3GE-24MT/DS
FX3G-1DA-BD FX3G-40MT/DS FX3G-60MT/ESS FX3GE-24MT/DSS
FX3G-232-BD FX3G-40MT/DSS FX3G-8AV-BD FX3GE-24MT/ES
FX3G-24MR/DS FX3G-40MT/ES-A FX3GA-24MR-CM FX3GE-24MT/ESS
FX3G-24MR/ES-A FX3G-40MT/ESS FX3GA-24MT-CM FX3GE-40MT/DS
FX3G-24MT/DS FX3G-422-BD FX3GA-40MR-CM FX3GE-40MT/DSS
FX3GE-40MR/DS FX3G-485-BD FX3GA-40MT-CM FX3GE-40MT/ES
FX3GE-40MR/ES FX3GA-60MT-CM FX3GA-60MR-CM FX3GE-40MT/ESS
FX3S-
FX3SA-10MR-CM FX3SA-30MR-CM FX3S-14MR/DS FX3S-20MT/DSS
FX3SA-10MT-CM FX3SA-30MT-CM FX3S-14MT/DS FX3S-20MT/ESS
FX3SA-14MR-CM FX3S-10MR/DS FX3S-14MT/DSS FX3S-30MR/DS
FX3SA-14MT-CM FX3S-10MT/DS FX3S-14MT/ESS FX3S-30MT/DS
FX3SA-20MR-CM FX3S-10MT/DSS FX3S-20MR/DS FX3S-30MT/DSS
FX3SA-20MT-CM FX3S-10MT/ESS FX3S-20MT/DS FX3S-30MT/ESS
FX1N-
FX1N-14MR-001
FX1N-14MT-001 FX1N-2AD-BD FX1N-422-BD FX1N-60MR-ES-BS
FX1N-1DA-BD FX1N-2EYT-BD FX1N-485-BD FX1N-60MR-YL
FX1N-232-BD FX1N-40MR-001 FX1N-4EX-BD FX1N-60MT-001
FX1N-24MR-001 FX1N-40MR-D FX1N-5DM FX1N-60MT-D
FX1N-24MR-D FX1N-40MR-DS FX1N-60MR-001 FX1N-60MT-DSS
FX1N-24MR-ES/UL FX1N-40MR-ES/UL FX1N-60MR-3A001 FX1N-60MT-ESS/UL
FX1N-24MT-001 FX1N-40MT-D FX1N-60MR-D FX1N-8AV-BD
FX1N-24MT-D FX1N-40MT-DSS FX1N-60MR-DS FX1N-BAT
FX1N-24MT-DSS FX1N-40MT-ESS/UL FX1N-60MR-ES/UL FX1NC-16MT
FX1NC-32MT FX1N-CNV-BD FX1N-EEPROM-8L
FX1S-
FX1S-10MR-001 FX1S-14MR-D FX1S-20MR-DS FX1S-30MR-D
FX1S-10MR-D FX1S-14MR-ES/UL FX1S-20MR-ES/UL FX1S-30MR-DS
FX1S-10MR-ES/UL FX1S-14MT-001 FX1S-20MT-001 FX1S-30MR-ES/UL
FX1S-10MT-001 FX1S-14MT-D FX1S-20MT-D FX1S-30MT-001
FX1S-10MT-D FX1S-20MR-001 FX1S-20MT-DSS FX1S-30MT-D
FX1S-14MR-001 FX1S-20MR-D FX1S-30MR-001 FX1S-30MT-DSS
FX2N-
FX2N-10GM FX2N-2DA FX2N-4AD-TC-BS FX2NC-16EX-T-DS
FX2N-10PG FX2N-2LC FX2N-4DA FX2NC-16EYR-T
FX2N-16EX FX2N-32CCL FX2N-5A FX2NC-16EYR-T-DS
FX2N-16EX-BS FX2N-32CCL-B FX2N-64CL-M FX2NC-16EYT
FX2N-16EX-C FX2N-32CCL-BT FX2N-64MT-001 FX2NC-1HC
FX2N-16EX-ES/UL FX2N-32ER FX2N-80MT-D FX2NC-232ADP
FX2N-16EXL-C FX2N-32ER-ES/UL FX2N-8AD FX2NC-32BL
FX2N-16EYR FX2N-32ES FX2N-8AV-BD FX2NC-32EX
FX2N-16EYR-BS FX2N-32ET FX2N-8ER FX2NC-32EYT
FX2N-16EYR-ES/UL FX2N-32ET-ESS/UL FX2N-8ER-BS FX2NC-485ADP
FX2N-16EYS FX2N-422-BD FX2N-8ER-ES/UL FX2NC-4AD
FX2N-16EYT FX2N-485-BD FX2N-8EX FX2NC-4DA
FX2N-16EYT-BS FX2N-48ER FX2N-8EX-BS FX2NC-64ET
FX2N-16EYT-C FX2N-48ER-D FX2N-8EX-ES/UL FX2NC-CNV-IF
FX2N-16EYT-ESS/UL FX2N-48ER-ES/UL FX2N-8EX-UA1/UL FX2NC-EEPROM-16
FX2N-16MR-DS FX2N-48ER-UA1/UL FX2N-8EYR FX2NC-EEPROM-16C
FX2N-16MT-001 FX2N-48ET FX2N-8EYR-ES/UL FX2NC-EEPROM-4C
FX2N-1HC FX2N-48ET-D FX2N-8EYR-ES/UL FX2NC-ENET-ADP
FX2N-1PG FX2N-48ET-DSS FX2N-8EYT FX2N-CNV-BC
FX2N-1PG-E FX2N-48ET-ESS/UL FX2N-8EYT-ESS/UL FX2N-CNV-BD
FX2N-1RM-E-SET FX2N-48MR-D FX2N-8EYT-H FX2N-CNV-IF
FX2N-20GM FX2N-4AD FX2NC-100MPCB FX2NC-ROM-CE1
FX2N-20PSU FX2N-4AD-PT FX2NC-16EX FX2NC-RTC
FX2N-232-BD FX2N-4AD-PT-BS FX2NC-16EX-T FX2N-GM-5EC
FX2N-232IF FX2N-4AD-TC FX2NC-16EX-T-DS FX2N-GM-65EC
FX2N-2AD FX2N-RS-5CAB FX2N-ROM-E1
FX-others
FX0N-30EC FX-16E-500CAB-R FX-232AWC-H FX-50DU-CAB0-1M
FX0N-32NT-DP FX-16E-500CAB-S FX-232CAB-1 FX-50DU-CAB0-R1
FX0N-3A FX-16E-TB FX2C-I/O-CON FX-A32E-150CAB
FX0N-40ET FX-16EYR-TB FX2C-I/O-CON-S FX-A32E-300CAB
FX0N-65EC FX-16EYT-TB FX2C-I/O-CON-SA FX-A32E-500CAB
FX-10DM-E FX-16NP-S3 FX-2PIF FX-EEPROM-16
FX-10GM FX-20P-ADP-KIT FX-30P FX-EEPROM-4
FX-16E-150CAB FX-20P-CAB0 FX-32E-TB FX-EEPROM-4C
FX-16E-150CAB-R FX-20P-CADP FX-485ADP FX-EEPROM-8
FX-16E-300CAB FX-20P-E FX-485PC-IF FX-EEPROM-8C
FX-16E-300CAB-R FX-20P-MFXD-E FX-485PC-IF-SET FX-EPROM-8
FX-16E-500CAB FX-232ADP FX-48ER-ES/UL FX-USB-AW
